Key Features
1. Unmatched Efficiency
30-Second Gel Production: ≤30s per gel (vs. 20min manually)
6-Gel High Throughput: Single run prepares 6 gels (0.75/1.0/1.5mm thickness)

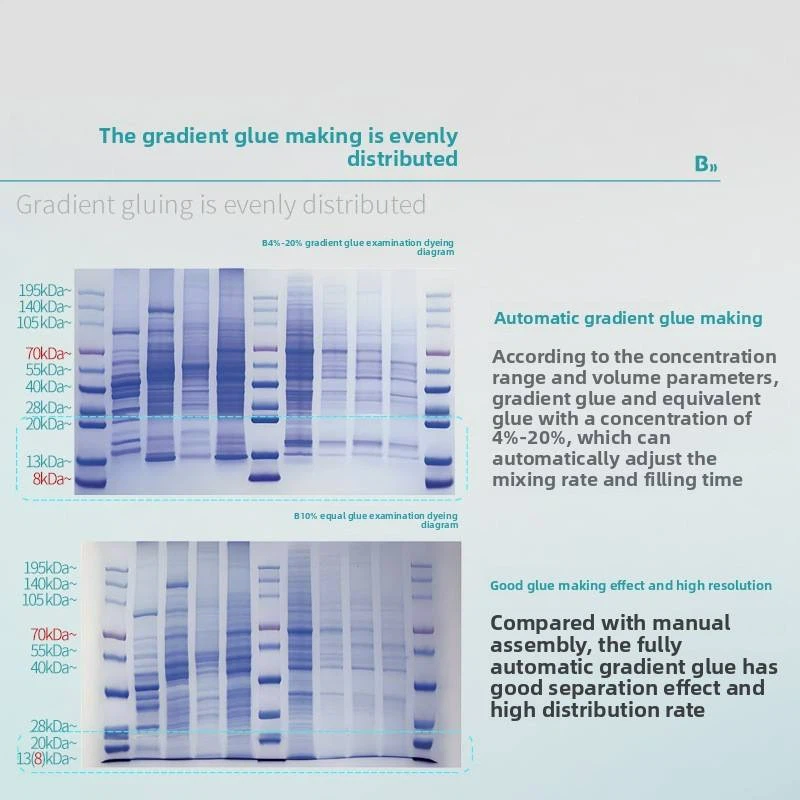

Auto Gradient Mixing: Precision pumps adjust acrylamide ratios for optimal separation
2. Intelligent Operation
7-Inch Touchscreen: Preloaded protocols for SDS-PAGE, native PAGE, etc.
One-Touch Start: Load reagents → Set parameters → Auto-fill/clean
Error Alerts: Real-time monitoring of clogs/air bubbles
3. Cost-Effective Performance
✔ Reagent Savings: <¥1/gel (vs. ¥16/precast gel)
✔ Low Maintenance: Self-cleaning function reduces cross-contamination
✔ Compact Design: 305×305×270mm (12.5kg) fits in biosafety cabinets
Technical Specifications
| Parameter | Specification |
|---|---|
| Gel Types | Gradient (4%-20%), Uniform concentration |
| Throughput | 6 gels/run (0.75/1.0/1.5mm) |
| Resolution | Sharp band separation (±2% deviation) |
| Power | 270W (100-240V, 50/60Hz) |
| Operating Temp | 10°C–40°C |
| Certifications | CE, ISO 13485 |
Applications
Western Blot: Precast gels for proteins (10-250 kDa)
Clinical Research: Serum/urine protein analysis
Biotech QC: Batch testing of recombinant proteins
Why Choose BKMAMLAB?
✅ Lab Time Savings: 90% faster than manual casting
✅ Publication-Quality Gels: Consistent pore size distribution
✅ Plug-and-Play: Includes reagent bottles, waste cup, and cleaning solution
Package Contents
Main Unit
4×500mL Reagent Bottles
Waste Liquid Cup
Cleaning Solution
Stylus & Power Cord (1.5m)
Quality Certificates
