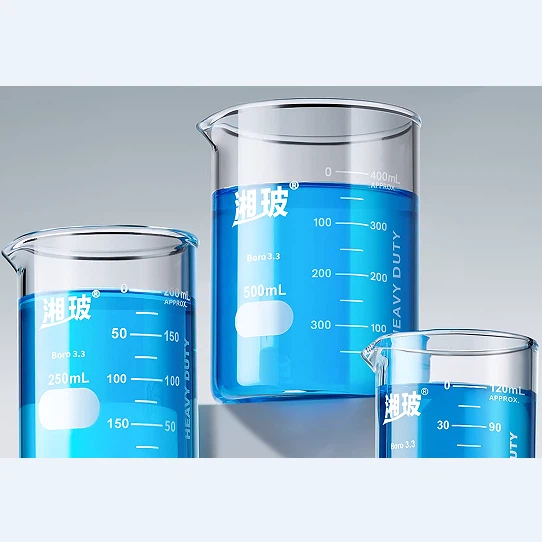

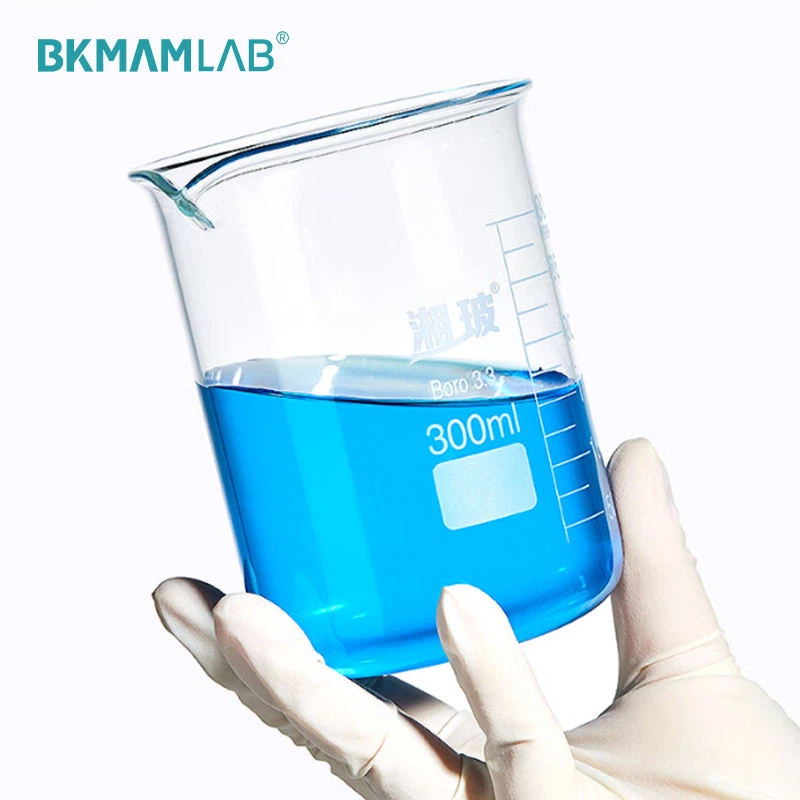

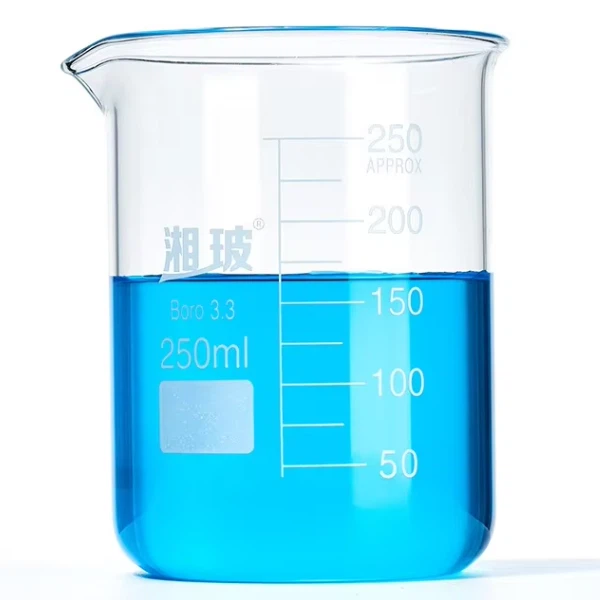

Thick-walled Glass Beaker
Thick-walled, low-form beakers are a type of glass container commonly used in laboratories, primarily for operations such as stirring, mixing, and heating solutions.
Feature:
1. This product is made of 3.3 high borosilicate glass(Boro3.3), possessing excellent chemical stability.
2. Thickened design provides good wear resistance and durability.
3. Individual cardboard packaging reduces the risk of product breakage.
4. High temperature resistance; it can withstand up to 800℃ under standard operating conditions, suitable for heating experiments.
5. High transparency facilitates monitoring of the experimental process.
6. Uniform wall thickness helps ensure even heating, reducing the risk of breakage due to localized overheating.
7. Features a pouring spout, preventing dripping from the rim during pouring, making it easy to use.
8. Clear markings are resistant to acid and alkali corrosion, making it easy to estimate solution volume.
9. A writing area with clear printing allows for easy recording of sample information.
10. Available in various specifications to meet different experimental needs.
| Item No. | Item name | Maximum diameter(mm) | Net weight (g) | Height (mm) | Wall thickness (mm) |
| 120104015 |
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 50mL
|
42±1
|
42±2
|
62±2
|
2.3
|
|
120104016
|
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 100mL |
50±1
|
78±3
|
80±2
|
2.8
|
|
120104017
|
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 150mL |
58±1
|
103±3
|
81±2
|
3 |
|
120104018
|
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 200mL |
69±1
|
138±3
|
89±2
|
3 |
|
120104019
|
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 250mL |
68±1
|
146±3
|
97±2
|
3 |
|
120104020
|
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 300mL |
78±1
|
173±3
|
100±2
|
3 |
|
120104021
|
湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 400mL |
79±1
|
206±7
|
110±2
|
3 |
| 120104022 | 湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 500mL |
85±1
|
218±7
|
118±2
|
3 |
| 120104023 | 湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 600mL |
90±1
|
255±7
|
125±2
|
3 |
| 120104024 | 湘玻®Low-form Beaker, Thick Wall, Printed Scale, Capacity 1000mL |
107±2
|
350±7
|
146±2
|
3 |
Instructions for use:
1. Preheating: Before heating, preheat the beaker to prevent breakage due to excessive temperature difference.
2. Heating: When heating with an alcohol lamp or water bath, ensure the bottom of the beaker is heated evenly to prevent breakage due to localized overheating; when using an alcohol lamp, use an asbestos mesh to avoid direct contact with the flame.
3. Stirring: When heating and dissolving samples, continuously stir the sample with a glass rod to prevent scorching at the bottom.
4. Transferring Liquids: When transferring liquids, ensure the beaker is tilted at an appropriate angle to prevent liquid from splashing out.
5. Cleaning: After use, clean and dry the beaker promptly for future use.
Precautions:
• Before use, check the beaker for cracks, chips, or other damage to ensure safe use.
• Do not place a hot beaker directly into cold water to cool, as this may cause the beaker to break due to excessive temperature difference.
• Do not heat the beaker for extended periods without liquid, as this may cause overheating and damage.
• Avoid collision with hard objects during use and cleaning to prevent scratches or breakage.
• Do not exceed the beaker's capacity limit to prevent sample overflow or splashing, which may result in sample loss or personal injury.
• Beakers are primarily used for stirring, mixing, and heating solutions; it is not recommended to store solutions in them to avoid sample evaporation or contamination.
• The beaker has graduated markings for rough measurement of liquids, but it is not suitable for precise measurement.
